Spring Boot Security + JWT (JSON Web Token) Authentication using MYSQL Example

In previous tutorial, we have learned Spring Boot with JWT Token Authentication with hard coded username and password. Now in this tutorial, we will create Spring Boot Application with JWT authentication by storing and fetching user credentials from MYSQL database using JPA.

You can go through Spring Boot Rest Authentication with JWT Token Flow to know how token validation and generation happens. Now let's start building the Spring Boot Application with JWT.

In next tutorial, we have integrated Angular 8 with Spring Boot JWT Authentication.

Create Simple Spring boot

Let's Create Spring Boot Project from Spring Initializer site https://start.spring.io/

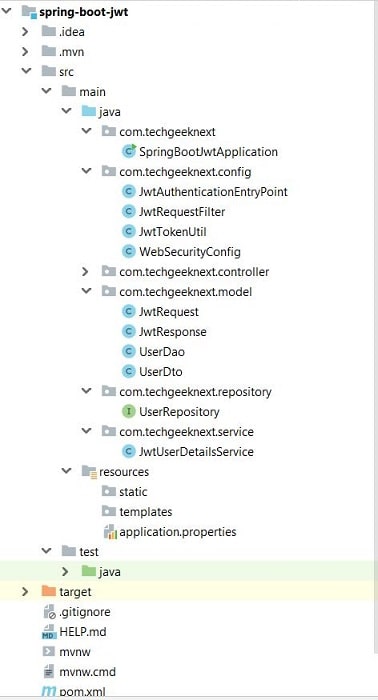

Project Structure

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.2.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.techgeeknext</groupId>
	<artifactId>spring-boot-jwt</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-boot-jwt</name>
	<description>Demo project for Spring Security with JWT and MYSQL JPA</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>io.jsonwebtoken</groupId>
			<artifactId>jjwt</artifactId>
			<version>0.9.1</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>


		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

Database connection properties

Add below properties in application.properties file.

jwt.secret=techgeeknext

## Spring DATASOURCE (DataSourceAutoConfiguration & DataSourceProperties)
spring.datasource.url = jdbc:mysql://localhost:3306/notesdb?createDatabaseIfNotExist=true&allowPublicKeyRetrieval=true&useSSL=false
spring.datasource.username = root
spring.datasource.password = root
spring.datasource.driver-class-name=org.mariadb.jdbc.Driver

spring.datasource.initialization-mode=always

## Hibernate Properties

# The SQL dialect makes Hibernate generate better SQL for the chosen database

spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MariaDB103Dialect

# Hibernate ddl auto (create, create-drop, validate, update)
spring.jpa.hibernate.ddl-auto = create-drop

Create Entity

This entity class is used for user information.

package com.techgeeknext.model;
import com.fasterxml.jackson.annotation.JsonIgnore;

import javax.persistence.*;

@Entity
@Table(name = "user")
public class UserDao {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private long id;
    @Column
    private String username;
    @Column
    @JsonIgnore
    private String password;

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

}

UserDto model class is responsible for getting the values from the user and passing them to the DAO layer to be inserted into the database.

package com.techgeeknext.model;

public class UserDto {
    private String username;
    private String password;

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }
}

JPA Repository (Data Layer)

This repository allows us to access the information stored in the database by using JPA. We have used CrudRepository. CrudRepository mainly provides CRUD functions while JpaRepository provide some JPA related methods such as flushing the persistent context, deleting records in a batch.

package com.techgeeknext.repository;
import com.techgeeknext.model.UserDao;
import org.springframework.data.repository.CrudRepository;
public interface UserRepository extends CrudRepository<UserDao, Integer> {
    UserDao findByUsername(String username);
}

Web Security Configuration

Add /autheticate and /register rest api url to be passed as a authorized request.

package com.techgeeknext.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

	@Autowired
	private JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;

	@Autowired
	private UserDetailsService jwtUserDetailsService;

	@Autowired
	private JwtRequestFilter jwtRequestFilter;

	@Autowired
	public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
		// configure AuthenticationManager so that it knows from where to load
		// user for matching credentials
		// Use BCryptPasswordEncoder
		auth.userDetailsService(jwtUserDetailsService).passwordEncoder(passwordEncoder());
	}

	@Bean
	public PasswordEncoder passwordEncoder() {
		return new BCryptPasswordEncoder();
	}

	@Bean
	@Override
	public AuthenticationManager authenticationManagerBean() throws Exception {
		return super.authenticationManagerBean();
	}

	@Override
	protected void configure(HttpSecurity httpSecurity) throws Exception {
		// We don't need CSRF for this example
		httpSecurity.csrf().disable()
				// dont authenticate this particular request
				.authorizeRequests().antMatchers("/authenticate", "/register").permitAll().
				// all other requests need to be authenticated
						anyRequest().authenticated().and().
				// make sure we use stateless session; session won't be used to
				// store user's state.
						exceptionHandling().authenticationEntryPoint(jwtAuthenticationEntryPoint).and().sessionManagement()
				.sessionCreationPolicy(SessionCreationPolicy.STATELESS);

		// Add a filter to validate the tokens with every request
		httpSecurity.addFilterBefore(jwtRequestFilter, UsernamePasswordAuthenticationFilter.class);
	}
}

Service Class Implementation

Define methods to load the user details and to persist the user details by using register rest end points.

package com.techgeeknext.service;

import com.techgeeknext.model.UserDao;
import com.techgeeknext.model.UserDto;
import com.techgeeknext.repository.UserRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import java.util.ArrayList;

@Service
public class JwtUserDetailsService implements UserDetailsService {
	@Autowired
	private UserRepository userDao;

	@Autowired
	private PasswordEncoder bcryptEncoder;

	@Override
	public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
		UserDao user = userDao.findByUsername(username);
		if (user == null) {
			throw new UsernameNotFoundException("User not found with username: " + username);
		}
		return new org.springframework.security.core.userdetails.User(user.getUsername(), user.getPassword(),
				new ArrayList<>());
	}

	public UserDao save(UserDto user) {
		UserDao newUser = new UserDao();
		newUser.setUsername(user.getUsername());
		newUser.setPassword(bcryptEncoder.encode(user.getPassword()));
		return userDao.save(newUser);
	}
}

Authentication Controller

We will have 2 rest api endpoints, /register to persist new user in database and /authenticate to generate token for that user.

package com.techgeeknext.controller;

import com.techgeeknext.config.JwtTokenUtil;
import com.techgeeknext.model.JwtRequest;
import com.techgeeknext.model.JwtResponse;
import com.techgeeknext.model.UserDto;
import com.techgeeknext.service.JwtUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.authentication.DisabledException;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.web.bind.annotation.*;

@RestController
@CrossOrigin
public class JwtAuthenticationController {

	@Autowired
	private AuthenticationManager authenticationManager;

	@Autowired
	private JwtTokenUtil jwtTokenUtil;

	@Autowired
	private JwtUserDetailsService userDetailsService;

	@RequestMapping(value = "/authenticate", method = RequestMethod.POST)
	public ResponseEntity<?> createAuthenticationToken(@RequestBody JwtRequest authenticationRequest) throws Exception {

		authenticate(authenticationRequest.getUsername(), authenticationRequest.getPassword());

		final UserDetails userDetails = userDetailsService.loadUserByUsername(authenticationRequest.getUsername());

		final String token = jwtTokenUtil.generateToken(userDetails);

		return ResponseEntity.ok(new JwtResponse(token));
	}

	@RequestMapping(value = "/register", method = RequestMethod.POST)
	public ResponseEntity<?> saveUser(@RequestBody UserDto user) throws Exception {
		return ResponseEntity.ok(userDetailsService.save(user));
	}

	private void authenticate(String username, String password) throws Exception {
		try {
			authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(username, password));
		} catch (DisabledException e) {
			throw new Exception("USER_DISABLED", e);
		} catch (BadCredentialsException e) {
			throw new Exception("INVALID_CREDENTIALS", e);
		}
	}
}

Employee Controller

Expose /greeting rest end point to user with generated token.

package com.techgeeknext.controller;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
@RestController
@CrossOrigin()
public class EmployeeController {
    @RequestMapping(value = "/greeting", method = RequestMethod.GET)
    public String getEmployees() {
        return "Welcome!";
    }
}

Testing

Now finally will test this by using below steps:

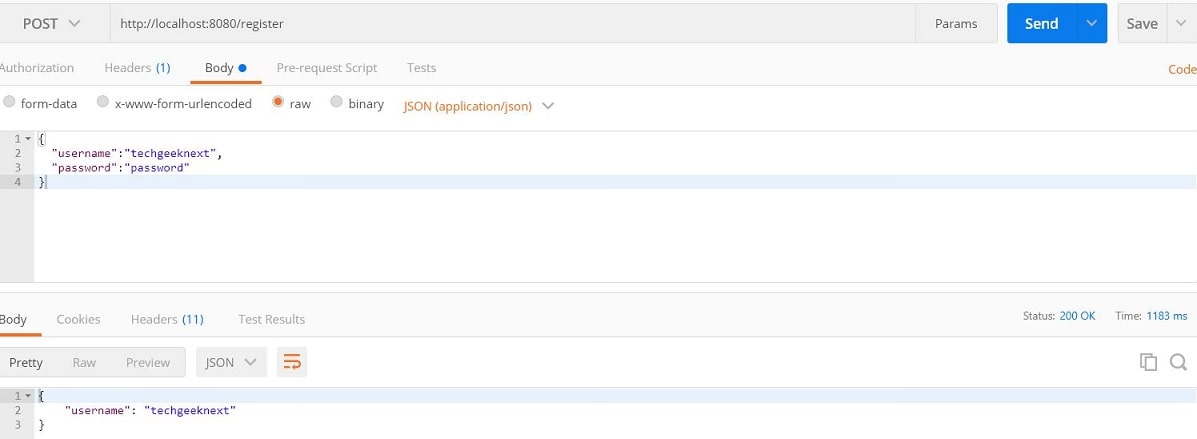

• Register New User
Create POST request (localhost:8080/register) and provide username and password in request body, which will get persist in MYSQL database.
If you see in database, user details has been persisted.

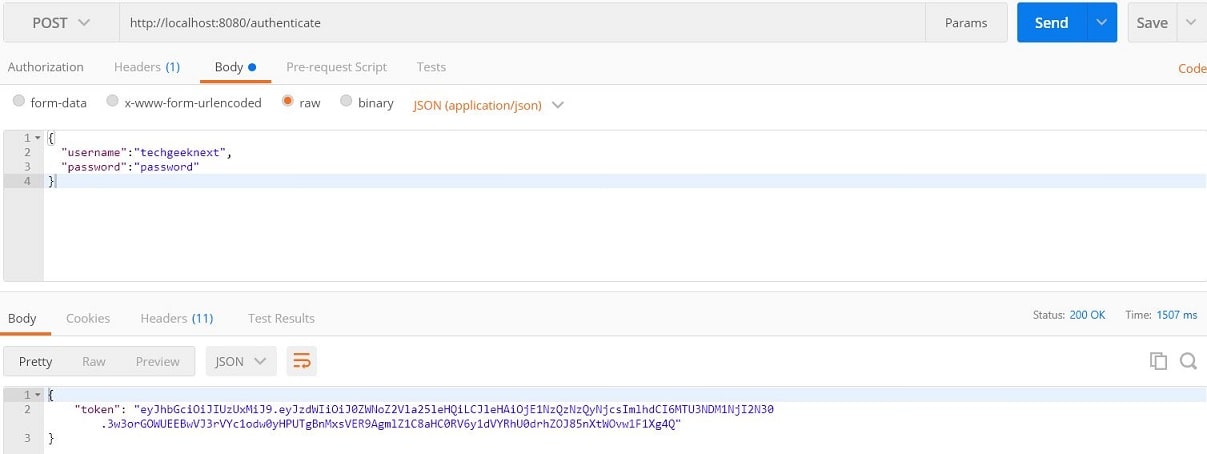

• Generate JSON Web Token (JWT)
Create POST request (localhost:8080/authenticate) and provide username and password in request body as given below.
• Validate JSON Web Token (JWT)

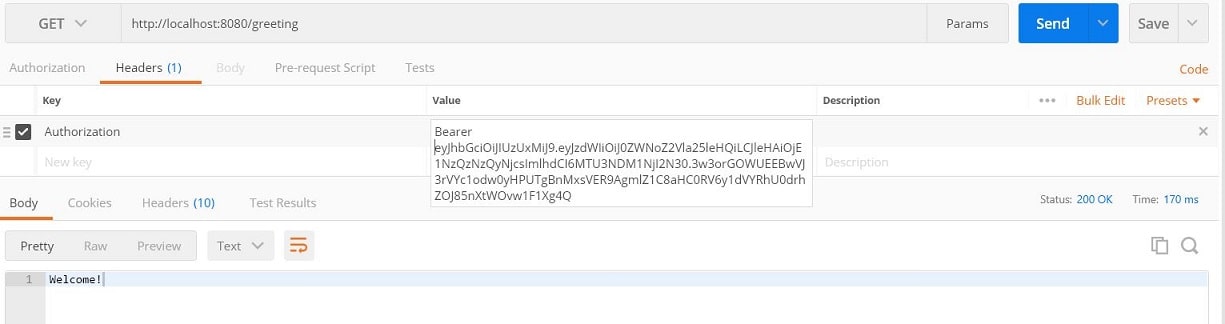

Now use GET request localhost:8080/greeting with above generated JWT Token in header request.

Download Source Code

The full source code for this article can be found on below.
Download it here - Spring Boot Security with JWT Token Authentication + MYSQL
